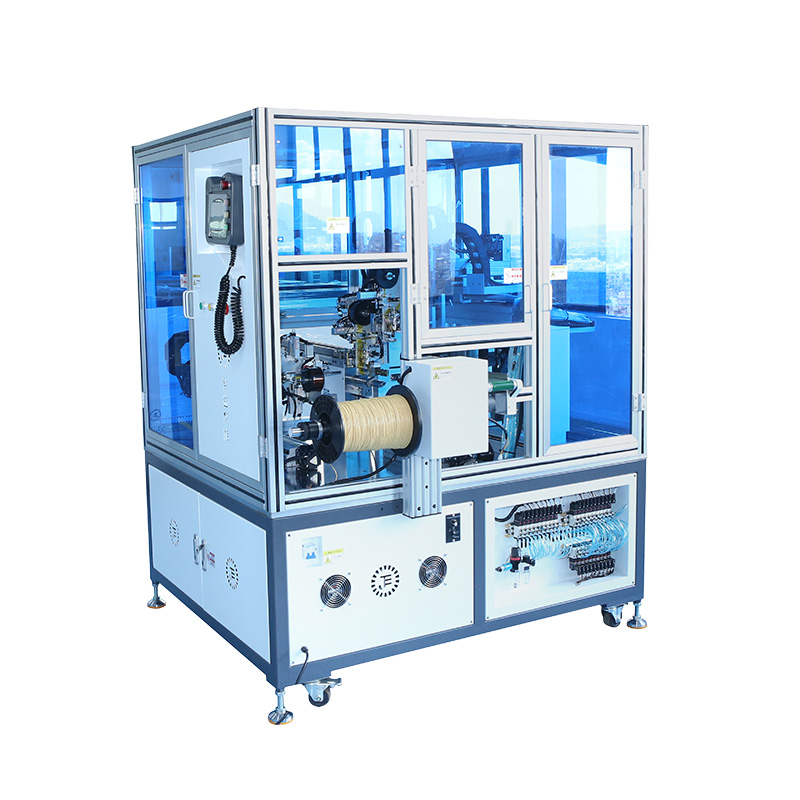

Key Features:
- High Automation: Fully automated operations, including loading, unloading, winding, cutting, and wrapping, reduce labor requirements. One operator can easily manage multiple machines, enhancing productivity.
- Precision and Stability: Equipped with a self-developed motion controller for stable performance, easy programming, and customizable functionality to meet specific customer needs.
- Advanced Wrapping System: Features a unique on-line wrapping tape and multi-dimensional cable arrangement device for faster type changes and seamless operation.
- Alarm Functionality: Integrated alarm system ensures real-time monitoring and quick resolution of issues for uninterrupted performance.
- Reliable Quality: Built with high-quality components and designed for 24-hour operation, ensuring durability and stable performance in demanding production environments.
Technical Specifications:
- Control Axes: 16-axis control for precise operations.
- Spindle Speed: Maximum of 2000 rpm for efficient winding.
- Travel Distance:
- Dual-row wire platform: X 450mm; Y 165mm; Z 140mm.
- Packaging platform: X 600mm; Y 165mm; Z 150mm.
- Wire Diameter Range: Supports wire diameters from 0.1mm to 2.0mm, including multi-core wires with a diameter below 0.1*400.
- Power Requirements: Operates at AC 220V ± 10% with a total power of 4.5 kW.
- Compressed Air Supply: 0.4 to 0.6 MPa.
- Dimensions and Weight: 1700mm x 1600mm x 1950mm; approximately 1200kg.
