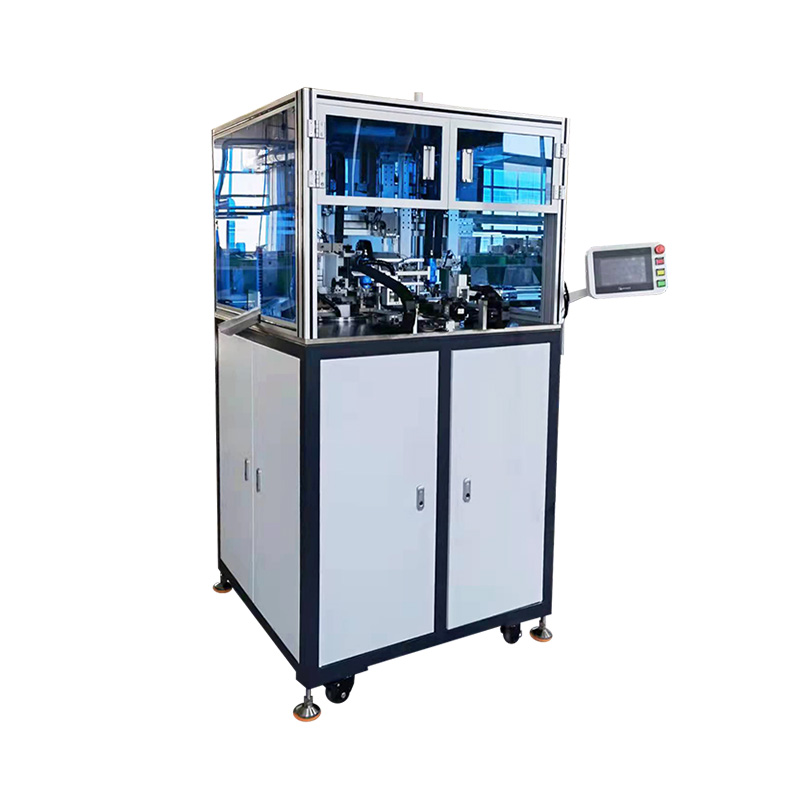

Key Features and Specifications:
- Control System: Advanced 10-axis control ensures precise and efficient winding operations.
- Spindle Distance: 320mm spindle distance accommodates a wide range of winding configurations.
- Magnet Ring Outer Diameter: Suitable for rings with diameters ranging from 14mm to 50mm, offering excellent flexibility.
- Core Inner Hole Completion: Ensures flawless core hole completion, perfectly matching wire diameter specifications.
- Applicable Wire Diameter: Handles wire diameters between 0.5mm and 2.2mm, making it versatile for various coil types.
- Maximum Coil Wire Length: Capable of winding coils up to 2 meters in length, supporting extensive applications.
- Power Requirements:
- Operating Voltage: AC 220V/50Hz
- Rated Power: 3500W
- Standby Power: 500W
- Pneumatic Supply: Operates efficiently with air pressure ranging from 0.4 MPa to 0.7 MPa.
- Dimensions and Weight:
- Machine Dimensions: 1850mm x 1050mm x 2410mm
- Machine Weight: 500kg, ensuring stability and reliability.
Premium Components:
- Motion Controllers: Guangdong Junyi
- Power Supply: Mingwei
- Touchscreen Interface: Taiwan Weilun
- Servo and Stepper Motors: Shenzhen JieMeiKang
- Bearings: NSK Japan
- Guides and Screws: TBI Taiwan
- Sensors and Switches: OMRON Japan and Taiwan Yadeke
- Belts: Mitsuboshi Japan
