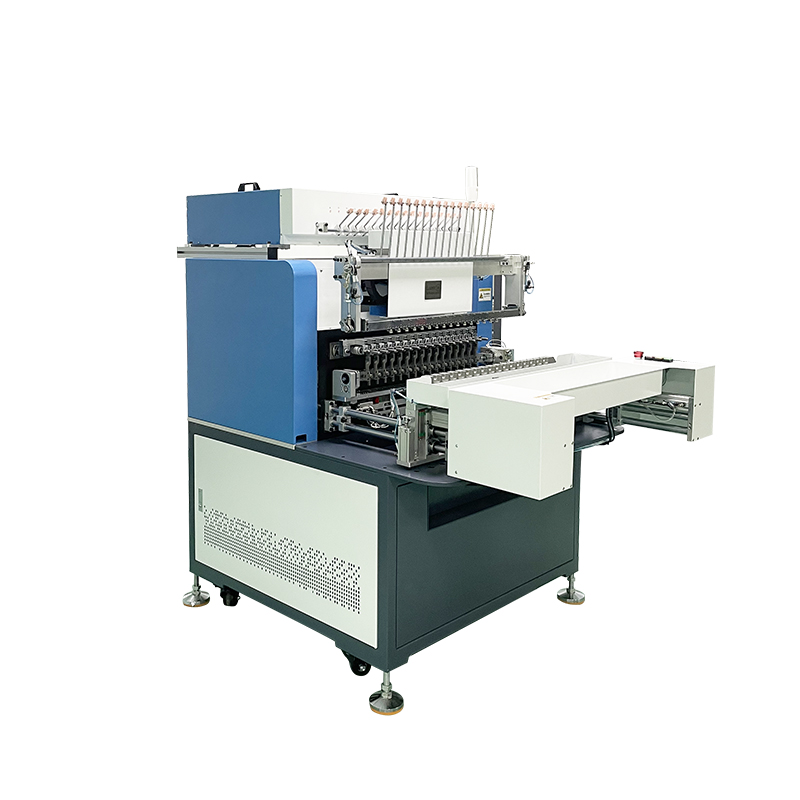

Key Features:
- 16-Axis Precision Control: Enables highly synchronized and accurate winding operations, supporting intricate coil designs and high production efficiency.
- Wide Compatibility: Accommodates wire diameters ranging from 0.025mm to 0.5mm, ensuring flexibility for various coil specifications.
- Enhanced Wire Spacing: Features a spindle distance of 54mm for precise wire positioning and optimized coil designs.
- Powerful Performance: Operates with a total power output of ≥3000W, powered by an AC 220V ±10% system for reliable and consistent performance.
- Robust Design: Supports a maximum bone frame diameter of 30mm with a main shaft diameter of 10mm, ensuring durability during extended operation.
- Optimized Pneumatics: Requires air pressure of 0.4 MPa to 0.6 MPa for smooth operation and system stability.
Technical Specifications:
- Spindles: 16 spindles for simultaneous multi-coil production.
- Machine Dimensions: 1260mm x 1200mm x 1630mm, compact and efficient for diverse production setups.
- Weight: Approximately 850kg, offering stability and reliability.
Premium Components:
- Motion Control System: Guangdong Junyi for seamless operation and customization.
- Power Supply: Mingwei for steady and dependable power.
- Bearings and Guides: NSK (Japan) and TBI (Taiwan) for precision and durability.
- Sensors and Switches: Equipped with OMRON sensors and Taiwan Yadeke magnetic switches for enhanced safety and efficiency.
- Belts: High-quality Mitsuboshi belts (Japan) for long-lasting performance.
