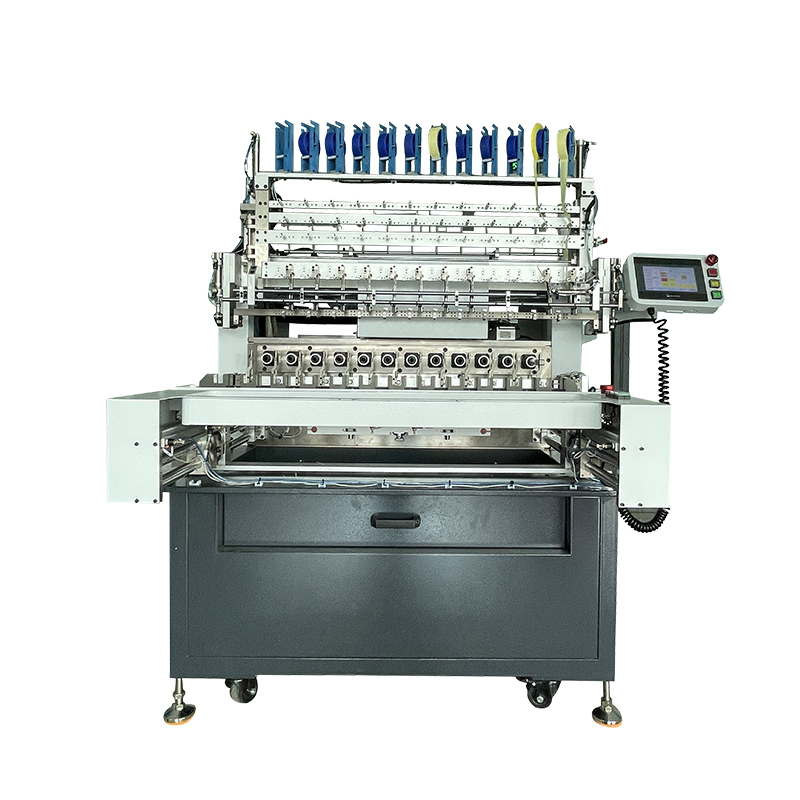

Key Features:
- High-Precision 12-Axis Control: Enables accurate and efficient winding operations for complex coil designs.
- Flexible Wire Spacing: Features a 54mm wire spindle distance, allowing precise spacing for various coil configurations.
- Wide Compatibility: Supports wire diameters ranging from 0.025mm to 0.5mm, making it versatile for diverse production requirements.
- Robust Design: Accommodates a maximum bone frame diameter of 30mm with a main shaft diameter of 10mm, ensuring stability during operation.
- Powerful Performance: Operates at ≥3000W, powered by an AC 220V ±10% supply, for high-efficiency production.
- Optimized Pneumatics: Requires air pressure between 0.4 MPa and 0.6 MPa for smooth and reliable operation.
Technical Specifications:
- Spindles: 12 spindles for simultaneous winding operations.
- Machine Dimensions: 1260mm x 1200mm x 1630mm, compact yet highly capable.
- Weight: Approximately 850kg, ensuring stability and durability.
Premium Components:
- Control System: Guangdong Junyi motion controller for advanced control and customization.
- Power Supply: Mingwei for consistent power delivery.
- Bearings and Guides: High-quality components from NSK (Japan) and TBI (Taiwan) for precise, smooth operation.
- Sensors and Switches: Equipped with OMRON sensors and magnetic switches from Taiwan Yadeke for enhanced safety and accuracy.
- Belts: Durable belts from Mitsuboshi (Japan) for long-lasting performance.
